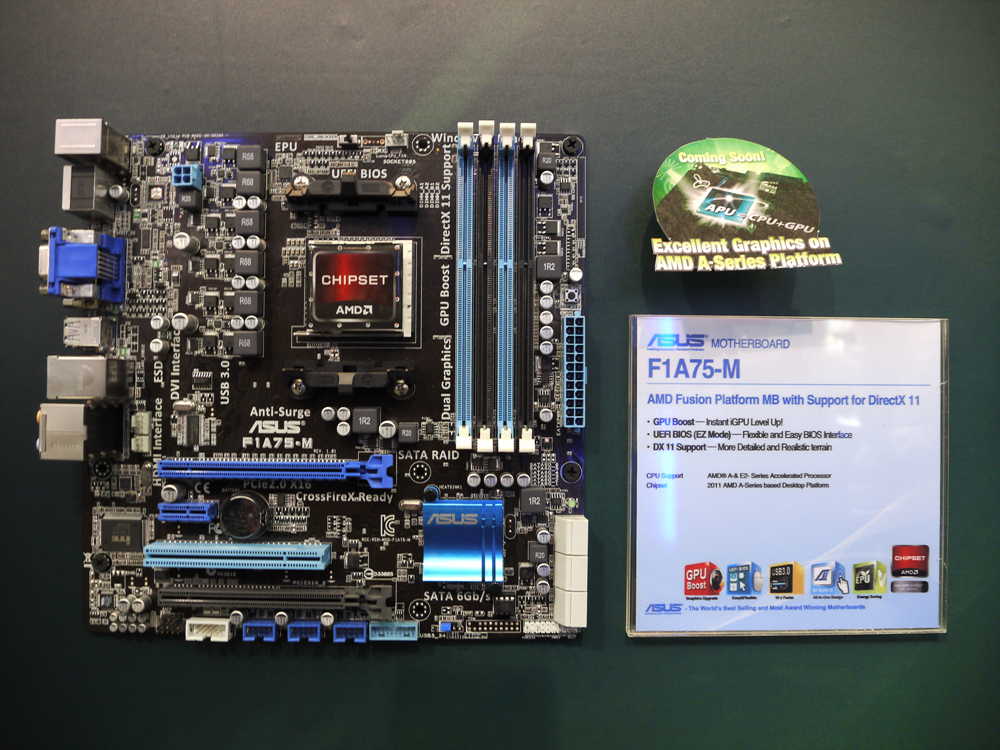

Here's a picture (note: this is not the PRO version)
| Specification |
| CPU | AMD Socket FM1 A- Series/E2- Series Accelerated Processors Supports CPU up to 4 cores Supports AMD® Turbo Core 2.0 Technology * The AMD® Turbo Core 2.0 Technology Support depends on the APU types |
Chipset | AMD A75 FCH (Hudson D3) |
| Memory | 4 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 Hz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1600 @ 60 Hz Dual independent displays support with HDMI/DVI and D-Sub AMD® Dual Graphics technology support *1 Supports DirectX 11 |
| Expansion Slots | 1 x PCIe 2.0 x16 (blue) 1 x PCIe 2.0 x16 (x4 mode, black) 1 x PCIe 2.0 x1 1 x PCI |
| Storage | AMD A75 FCH (Hudson D3) chipset : *2 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 10, JBOD |
| LAN | Realtek® 8111E , 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC 892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Optical S/PDIF out port(s) at back panel |
| USB Ports | AMD A75 FCH (Hudson D3) chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) AMD A75 FCH (Hudson D3) chipset : 10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board) ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue) |
| Overclocking Features | Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |
| Special Features | ASUS Dual Intelligent Processors 2 with DIGI+ VRM : ASUS TPU : - Auto Tuning - TurboV - TPU switch ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 4 +2 Phase Power Design ASUS Exclusive Features : - MemOK! - AI Suite II - Ai Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS Q-Shield - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS 100% All High-quality Conductive Polymer Capacitors |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) |
| Accessories | User's manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) |
| BIOS | 32 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a |
| Support Disc | Drivers ASUS PC Probe II ASUS Update Anti-virus software (OEM version) |
| Form Factor | uATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Note | *1: Refer to www.amd.com for the discrete GPUs which support Dual Graphics. *2: These SATA ports are for data hard drives only. ATAPI devices are not supported. |
Information from the ASUS support site
